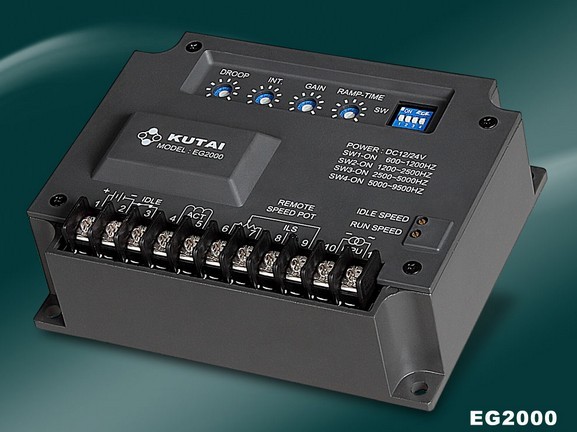

Kutai EG2000 Universal Electronic Engine Governor

Kutai EG2000 Universal Electronic Engine Governor
Product Name : Kutai EG2000 Universal Electronic Engine Governor
Product ID : EG2000
MOQ : 1pc
Packaging : Individual packing or neutral packing
Delivery time : about 3 working days
Payment terms : T/T,West Union,Paypal
Supply ability : 3000pcs/month
Introduction

Kutai EG2000 Universal Electronic Engine Governor Controller
The EG2000 is a universal generator governor / engine speed controller equipped with Smoke Limiting, & Idle Speed. Suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps, also can be used with Low Current, Electric over Hydraulic Oil Pumps Type Governor Actuators. It's compatible with following model. Cummins 4913988-BI, 3419988, 3098693 and 3044196 AVR. GAC ESD5500 and ESD5500E. Woodward EPG P/N 8290-189,8290-038, and ESD5500E K77255.
*EG1065X and EG1069X have ceased production and will be replaced by EG2000.

Features

  • Works on a wide ranges of MPU/flywheel frequencies

  • 15 Amp Max Output

  • Suitable for all types of diesel and Gas engines

  • High Sensitivity and stable at Low Frequency Variations

  • Moisture, vibration, and rust protected, Epoxy encapsulated electronics

  • For Use With Isochronous Generators & Automatic Paralleling PLC controls

  • Idle Speed Adjustment and connections for a Remote Speed POT

Specifications

OperatingVoltage10VDCto30VDC
OutputCurrentFrom0.5Ampto15Amp
FrequencyRange600Hz~9500Hz(PMGSignal)
IdleSpeedFrequencyAdjustableFrom30~85%ofnormal
SpeedBand±0.25%atsteadystate
Temp.StabilityBetween-40~85°CBetterthan±0.5%
RemoteSpeedAdjustmentRange(2mode)AdjustableRange±5%with5KOhmpotentiometer
RampTime3to20Sec.(Adjustable)
OperationEnvironmentOperationTemp.:-40~85°C
StorageTemp.:-40~85°C
RelativeHumidity:Maximum95%
Vibration:3G@100~2KHz
DIPSwitchDescriptionSW1:ON600~1200Hz
SW2:ON1200~2500Hz
SW3:ON2500~5000Hz
SW4:ON5000~9500Hz
GovernorControlsDROOP:DroopRateAdjustment
GAIN:MPUOutputGainAdjustment
Int.:EngineStabilityAdjustment
RAMP-TIME:SoftStartAdjustment
SPEED:SpeedAdjustment
IDLE:IdleSpeedAdjustment
Dimensions147.0(L)x114.0(W)x40.0(H)mm
Weight690g±2%
